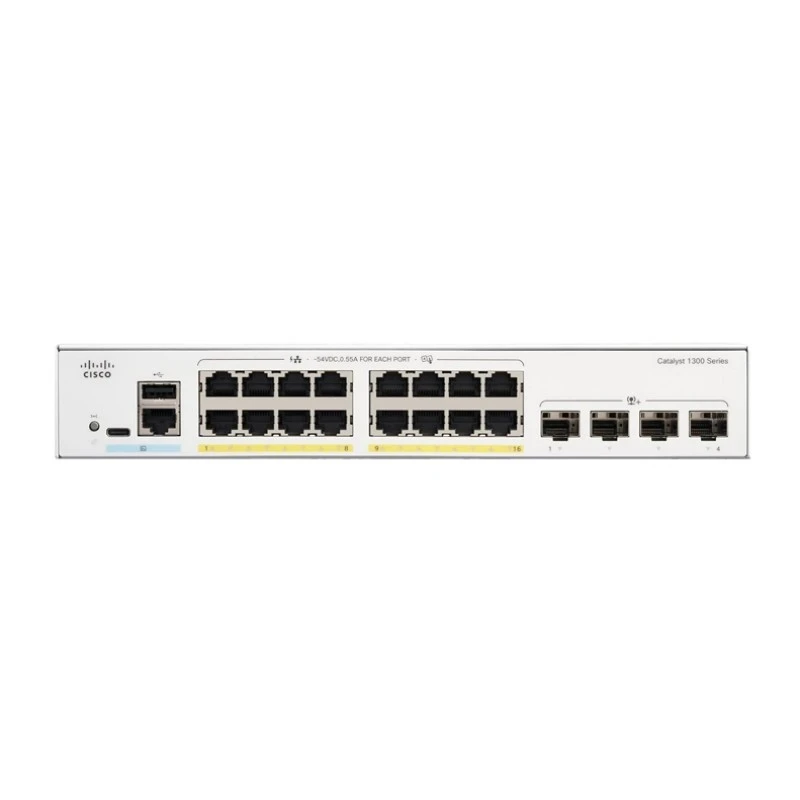

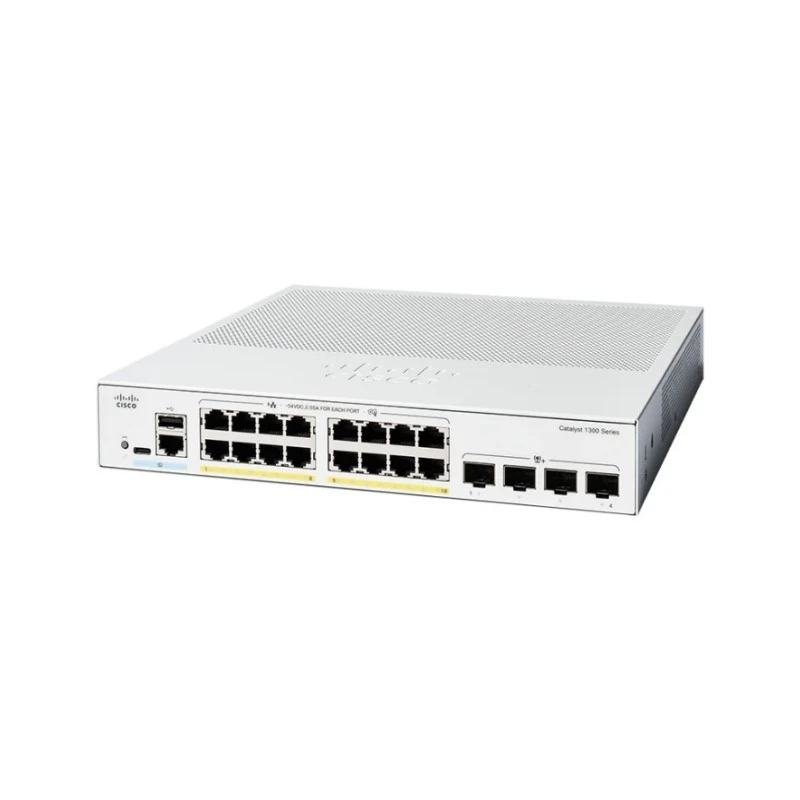

Cisco Catalyst C1300-16P-4X Switch Overview
The switch has 16 10/100/1000BASE T PoE+ (IEEE 802.3at) downlink ports with up to 30W power per port and 4 fixed 10G SFP+ uplink ports for high-speed fibre backbone connectivity. The switch has a total PoE budget of 120W, and can power IP phones, wireless access points, surveillance cameras and IoT endpoints over a single Ethernet cable. The fanless chassis (268 × 297 × 44 mm) guarantees silent operation and is ideal for open plan workplaces, retail outlets, classrooms and other noise sensitive areas.
The switch features a dual core ARM CPU at 1.4 GHz, 1 GB DDR4 DRAM, and 512 MB NAND. It has a non-blocking switching capacity of 112 Gbps and wire speed forwarding rate of 83.32 Mpps (64 byte packets). The device provides 16,000 MAC address entries, jumbo frames up to 9,000 bytes, 4,093 VLANs and 8-unit hardware stacking with hardware failover for easy management and scalable port density. It provides advanced Layer 3 features including static IPv4/IPv6 routing, inter-VLAN routing of up to 990 static IPv4 routes and 128 IPv4 interfaces, and Policy-Based Routing (PBR).
Advanced security features including IEEE 802.1X port-based authentication, Access Control Lists (ACLs) (up to 1024 rules), Dynamic ARP Inspection (DAI), IP Source Guard, DHCP snooping, and DoS attack protection. Cisco Business Dashboard for simple management with intuitive web-based GUI, CLI, and SNMP. No subscription or licensing fees for core functionality, and zero-touch setup is available with Cisco Network Plug and Play.
The C1300-16P-4X series is ideal for secure office connectivity, unified communications, high density PoE+ endpoint deployments for security cameras, APs and VoIP phones, branch office access layers with 10G uplink scalability and retail or educational environments where silent fanless operation, small size and enterprise-grade reliability are a must. backed by Cisco Limited Lifetime Hardware Warranty.
FAQ
Q1: What is the Cisco Catalyst C1300-16P-4X?
A1: The Cisco Catalyst C1300-16P-4X is a managed Gigabit Ethernet PoE+ switch designed for small and medium-sized business networks, branch offices, retail stores, and enterprise edge deployments. It provides 16 Gigabit PoE+ access ports and 4 dedicated 10G SFP+ uplink ports for high-speed fiber connectivity.
Q2: How many ports does the switch have?
A2: The switch includes:
● 16 × 10/100/1000 Gigabit Ethernet PoE+ ports.
● 4 × 10G SFP+ uplink ports.
● RJ45 console port.
● USB Type-C console port.
This configuration supports high-speed uplinks and flexible network expansion.
Q3: Does the C1300-16P-4X support PoE?
A3: Yes. The switch supports IEEE 802.3af and IEEE 802.3at PoE+ standards.
Key PoE specifications include:
● Up to 30W per port.
● Total PoE budget: 120W.
It can power devices such as:
● Wireless access points.
● IP phones.
● Security cameras.
● IoT devices.
Q4: Are the uplink ports 10G?
A4: Yes. The switch includes 4 dedicated 10G SFP+ uplink ports for high-speed aggregation, server connectivity, or stacking. These ports also support compatible 1G SFP modules.
Q5: Does the switch support stacking?
A5: Yes. The C1300-16P-4X supports hardware stacking with compatible Catalyst 1300 Family 1 switches.
Supported stacking models include:
● C1300-16P-4X.
● C1300-24T-4X.
● C1300-24P-4X.
● C1300-24FP-4X.
● C1300-48T-4X.
● C1300-48P-4X.
● C1300-48FP-4X.
The platform supports up to 8 switches in a stack.
