AITI Tech Limited is one of the leading manufacturers and suppliers of catalyst c1300-24p-4x in China. With over 20 years' experience, we warmly welcome you to buy bulk cheap catalyst c1300-24p-4x in stock here from our factory. All our products are with high quality and low price. Contact us for pricelist.

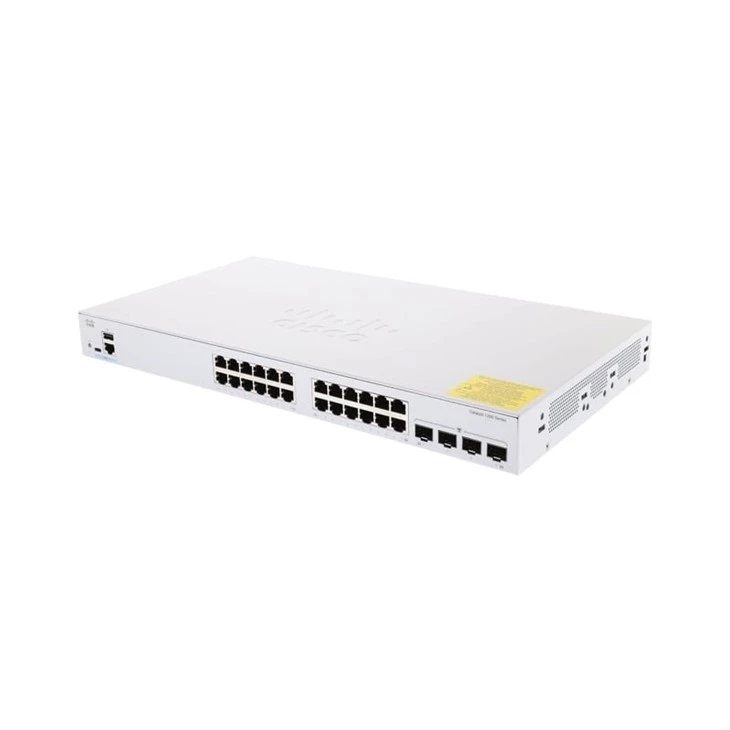

Cisco Catalyst C1300-24P-4X Switch Specifications
The switch provides 24 x 10/100/1000BASE-T PoE+ (IEEE 802.3af/at) downlink ports, delivering up to 30W of power per port, and 4 fixed 10G SFP+ uplink ports to enable high-speed fibre backbone connectivity. 195W total PoE budget to power IP phones, wireless access points, surveillance cameras and IoT endpoints directly over one Ethernet connection. The fanless chassis guarantees silent operation making it suitable for open plan offices, conference rooms and other noise sensitive areas.
The switch has a 1.4 GHz dual-core ARM CPU, 1 GB DDR4 DRAM and 512 MB flash. The non-blocking switching capacity is 128 Gbps and the wire-speed forwarding rate is 95.23 million packets per second (Mpps). 16,000 MAC address table entries. Jumbo frame support up to 9,000 bytes. Up to 990 static IPv4 routes. 4,093 VLAN IDs. Stacking up to 8 units for scalable network design.
Rich Layer 2/3 features include 802.1Q VLAN Tagging, Voice VLAN, Auto Surveillance VLAN, LACP, STP/RSTP/MSTP, QoS with 8 priority queues, and IGMP snooping. Advanced security features include IEEE 802.1X port-based authentication, ACLs (up to 1,024 rules), DoS attack protection, DHCP snooping, and IPv6 First Hop Security. Management options include Cisco Business Dashboard, web UI, CLI, mobile app and Cisco Network Plug and Play for zero touch deployment.
The C1300-24P-4X series is the perfect solution for secure office connectivity, unified communications, highly secure guest access for SMB main offices, retail locations, classrooms and branch office deployments requiring PoE+ and 10G uplink capability to future-proof network development. The switch is protected by Cisco's Limited Lifetime Hardware Warranty and is eligible for free technical assistance for one year without subscription or licensing fees.
FAQ
Q1: What is the Cisco Catalyst C1300-24P-4X switch?
A1: The Cisco Catalyst C1300-24P-4X is a managed Layer 2/Layer 3 Gigabit Ethernet switch designed for small and medium-sized business networks. It features 24 PoE+ access ports and 4 × 10G SFP+ uplink ports for high-speed aggregation and backbone connectivity.
Q2: How many ports does the C1300-24P-4X have?
A2: The switch includes:
● 24 × 10/100/1000 Gigabit Ethernet PoE+ ports.
● 4 × 10G SFP+ uplink ports.
This configuration is suitable for high-density access deployments and fast uplink connections.
Q3: Does the switch support PoE?
A3: Yes. The switch supports IEEE 802.3af and IEEE 802.3at PoE+ standards.
It can power devices such as:
● Wireless access points.
● IP phones.
● Security cameras.
● IoT devices.
Each port can provide up to 30W of PoE power.
Q4: Are the uplink ports 1G or 10G?
A4: The C1300-24P-4X includes 4 dedicated 10G SFP+ uplink ports. These ports support high-speed fiber uplinks and can also be used for switch stacking on supported models.
Q5: Does the switch support stacking?
A5: Yes. The C1300-24P-4X supports front-panel stacking with compatible Catalyst 1300 4X series switches.
According to Cisco documentation and user discussions, the following models can stack together within the same family:
● C1300-16P-4X.
● C1300-24T-4X.
● C1300-24P-4X.
● C1300-24FP-4X.
● C1300-48T-4X.
● C1300-48P-4X.
● C1300-48FP-4X.
