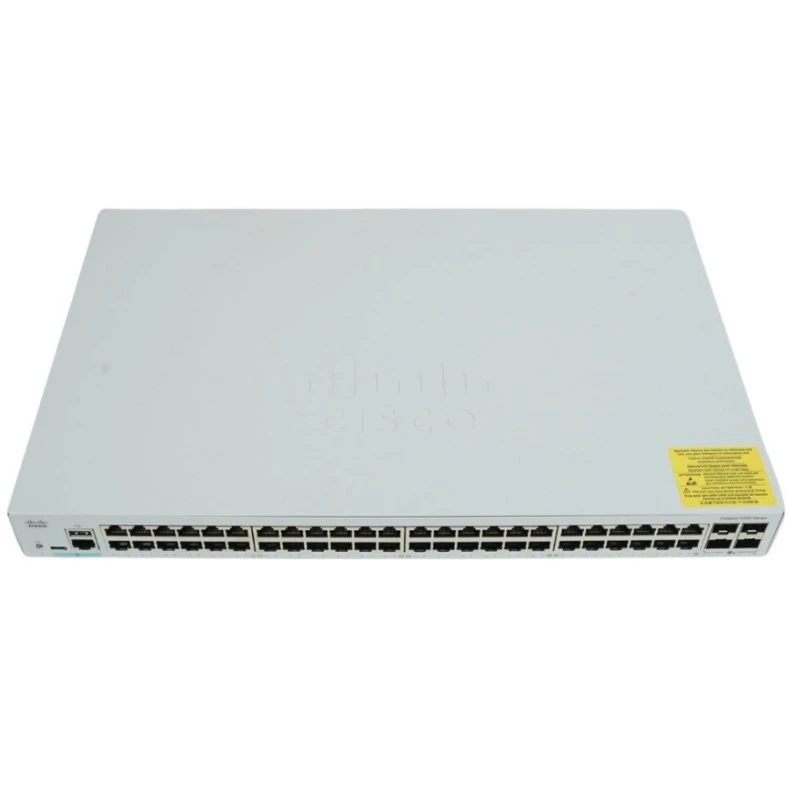

Cisco Catalyst C1300-48FP-4X Switch - Introduction
The switch features 48 × 10/100/1000BASE T PoE+ (IEEE 802.3at) downlink ports, with each port capable of delivering up to 30 W of power and 4 × fixed 10G SFP+ uplink ports for high-speed fibre backbone integration. The total PoE budget is 740W, and all 48 ports can be powered simultaneously at full PoE without the need for power injection to IP phones, Wi-Fi access points, surveillance cameras, and other IoT endpoints. The switch is powered by a 1.4 GHz dual-core ARM CPU with 1 GB DDR4 DRAM and 512 MB flash. It provides non-blocking performance across all ports with a switching capacity of 176 Gbps and a wire-speed forwarding rate of 130.94 million packets per second (Mpps). The platform supports 16,000 MAC address entries, up to 4093 VLANs and up to 9000 byte jumbo frames. It also provides static IPv4 / IPv6 routing for inter VLAN communication without dedicated routers.
Robust security features including IEEE 802.1X port-based authentication, Access Control Lists (ACLs) with up to 1024 entries, DoS attack protection, Dynamic ARP inspection (DAI), DHCP snooping and IP Source Guard. Easy to manage via Cisco Business Dashboard intuitive web-based GUI, CLI and SNMP. Up to eight switches can be stacked on the front panel to create a single logical unit for management, which makes operation and administration easier. The chassis contains one low noise cooling fan for dependable thermal control. It supports IEEE 802.3az Energy-Efficient Ethernet (EEE) to reduce power consumption during operation. The C1300 48FP 4X series comes with Cisco's Limited Lifetime Hardware Warranty, and is ideal for high-density PoE+ with 10G uplink scalability for secure office connectivity, unified communications, high-density guest access, education campuses, healthcare institutions, and corporate headquarters.
Note: The "FP" in C1300-48FP-4X means"Full PoE" all 48 ports deliver the 740W budget for maximum power-intensive endpoint density. If your PoE needs are smaller, then you may want to consider the 48-port models with regular PoE+ budget (C1300-48P-4X).
FAQ
Q1: What is the Cisco Catalyst C1300-48FP-4X used for?
A1: Cisco Catalyst C1300-48FP-4X is a good fit for medium to large enterprise, campus, branch office and high-density deployments requiring full PoE+ power and 10G uplink.
Q2: What is "FP" in this model?
A2: "FP" stands for Full PoE, which means that all 48 PoE+ ports can deliver full power simultaneously without sacrificing per-port availability and this supports large-scale powered device deployments.
Q3: How many PoE+ ports are on the switch?
A3: 48 × Gigabit Ethernet PoE+ ports (IEEE 802.3af/at), each port capable of up to 30W power output.
Q4: What is the total PoE budget?
A4: The total PoE budget is 740W, allowing for full power operation on all 48 ports for devices such as IP phones, wireless access points, IP cameras, and IoT endpoints.
Q5: What are the available uplink interfaces?
A5: It has 4 × 10G SFP+ uplink ports for high speed fibre connectivity to core or aggregation network layers.
Q6: What are the switching capabilities of the C1300-48FP-4X?
A6: It features 176 Gbps switching capacity and 130.94 Mpps forwarding rate to provide wire-speed, non-blocking performance on all ports.
Q7: Does the switch have stacking support?
A7: Yes. Switch stacking enables multiple switches to operate as a single logical device and be managed centrally . Stacking supports up to 8 switches per stack.
Q8: Does the switch support Layer 3 routing?
A8: Yes It provides static IPv4/IPv6 routing and inter-VLAN routing for effective segmentation without requiring external routing equipment.
