AITI Tech Limited is one of the leading manufacturers and suppliers of catalyst c9300l-24uxg-4x in China. With over 20 years' experience, we warmly welcome you to buy bulk cheap catalyst c9300l-24uxg-4x in stock here from our factory. All our products are with high quality and low price. Contact us for pricelist.
Port Configuration & UPoE Capability

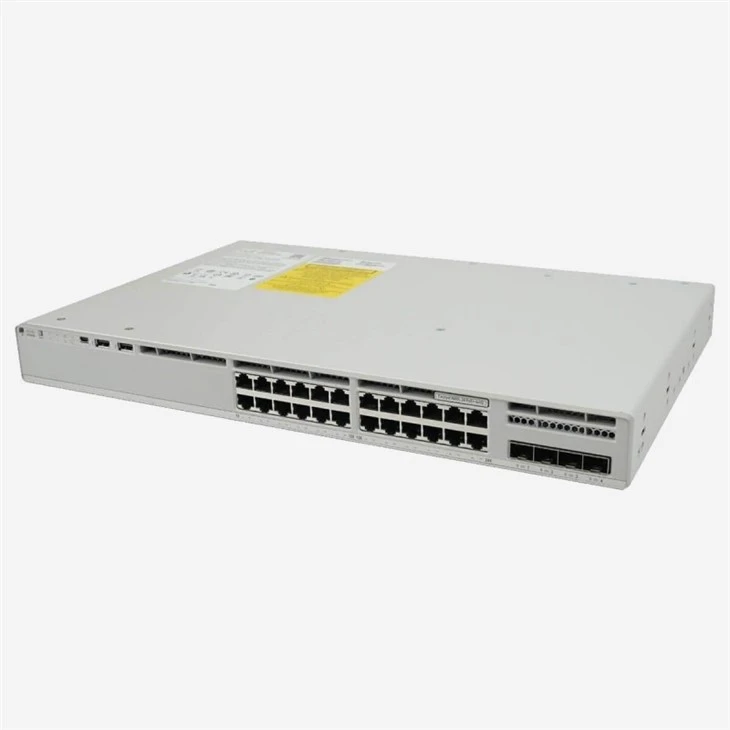

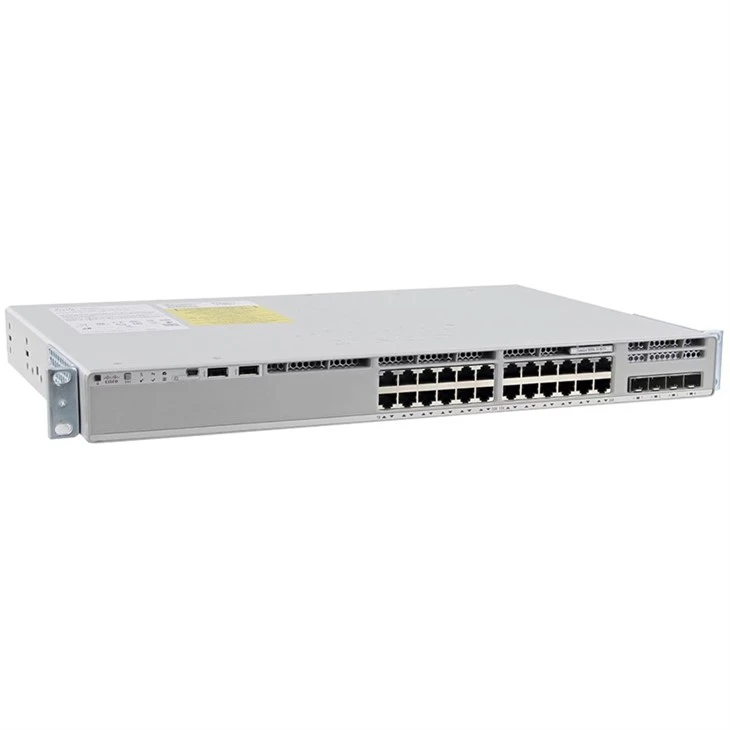

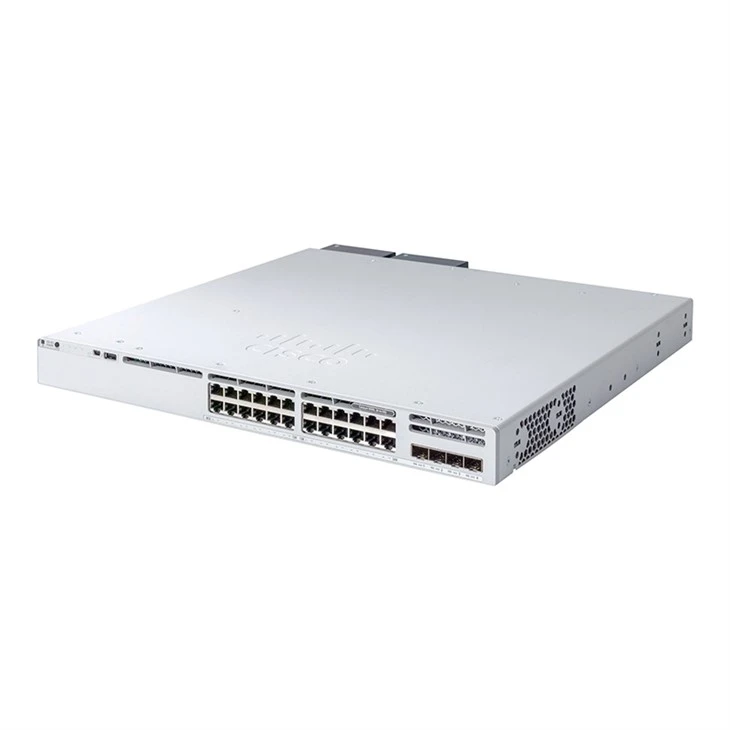

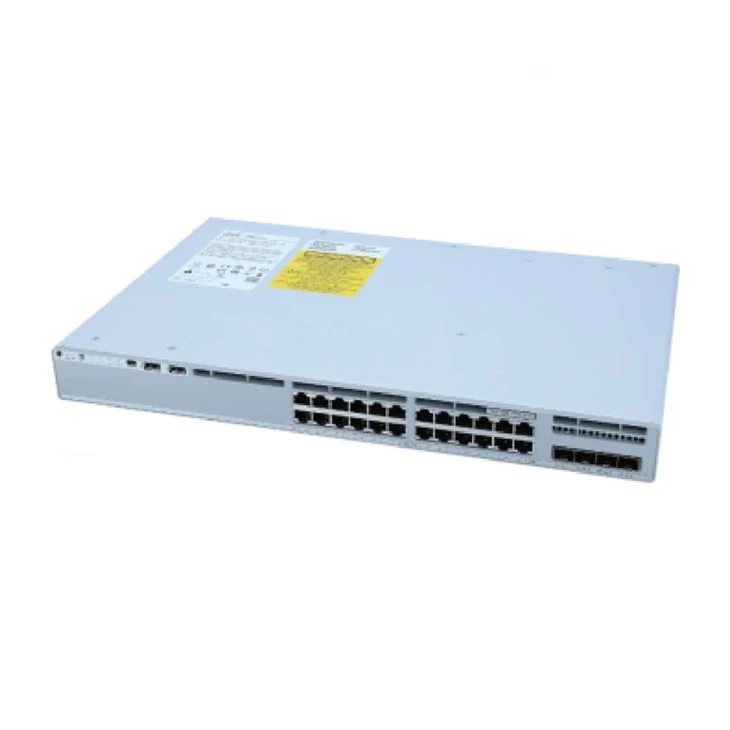

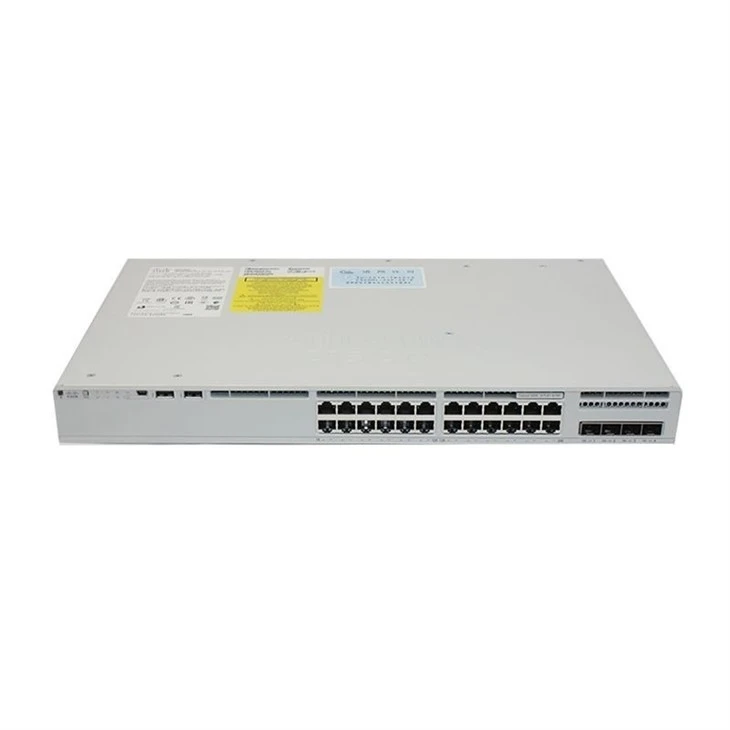

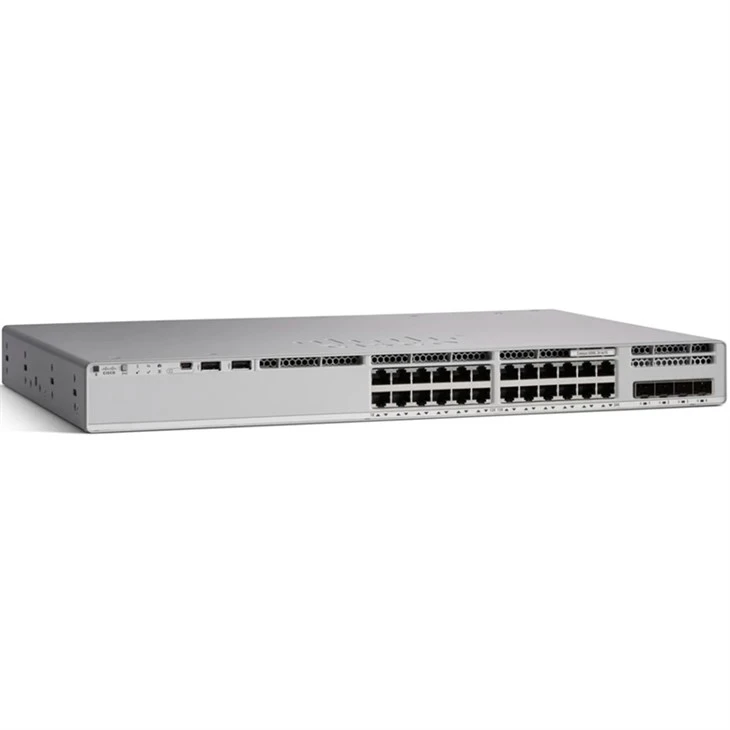

The switch features 24 Cisco UPoE (Universal Power over Ethernet) downlink ports, comprising 8 multigigabit (mGig) ports supporting 10G/5G/2.5G/1G/100M auto-negotiation and 16 Gigabit Ethernet ports supporting 1G/100M/10M. All 24 ports deliver up to 60W per port (Cisco UPoE), enabling direct powering of high-performance Wi-Fi 6 access points, pan-tilt-zoom cameras, and digital signage without separate power adapters. The switch includes 4 fixed 10G SFP+ uplink ports for high-speed backbone integration and ships with a single 1100W AC power supply providing a PoE budget of 880W, expandable to 1440W with a second supply.
Performance & High Availability
The switch delivers 272 Gbps switching capacity and a 202.38 Mpps forwarding rate, scaling to 592 Gbps switching capacity and 440.47 Mpps when stacked. StackWise-320 technology provides up to 592 Gbps stacking bandwidth (modular stacking, dependent on stacking module used), supporting up to eight switches as a single logical unit. The platform includes 8 GB DRAM, 16 GB flash, a 16 MB packet buffer, and 32,000 MAC address entries. NSF/SSO ensures sub-50-ms failover for the most resilient architecture in a stackable platform.
Security, Management & Ideal Deployment
Built on Cisco IOS XE and the UADP 2.0 ASIC, the switch includes AES-128 MACsec hardware encryption, 802.1X authentication, TrustSec, and Encrypted Traffic Analytics. Management options include CLI, NETCONF, RESTCONF, and Cisco Catalyst Center. Available with Network Essentials (–E) or Network Advantage (–A) perpetual licenses (mandatory Cisco DNA subscription required). The C9300L-24UXG-4X series is ideal for high-density Wi-Fi 6/6E campus access layers, large branch offices requiring power-over-Ethernet for next-generation wireless, and converged networks demanding multigigabit wired connectivity.
