Catalyst C9300L-48UXG-4X

Catalyst C9300L-48UXG-4X
Details:

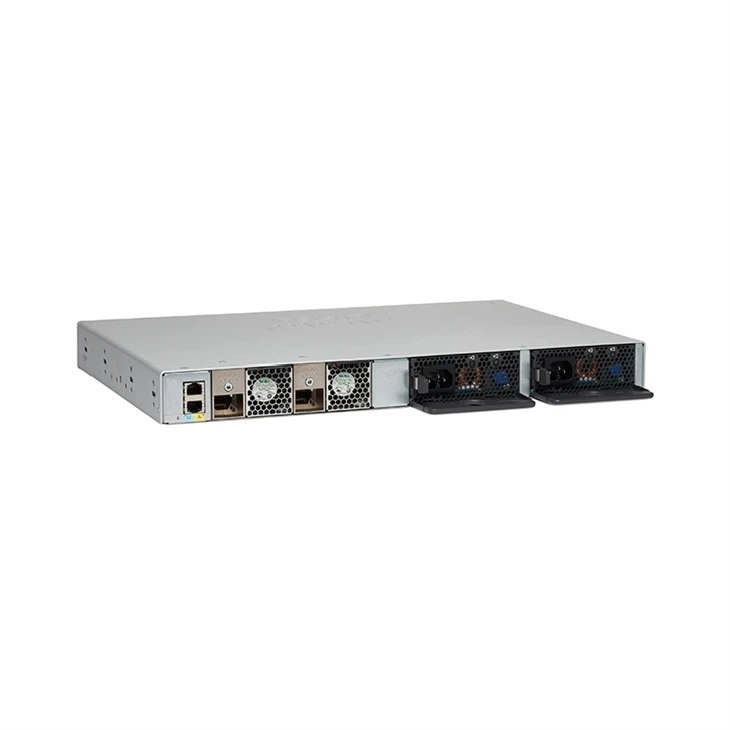

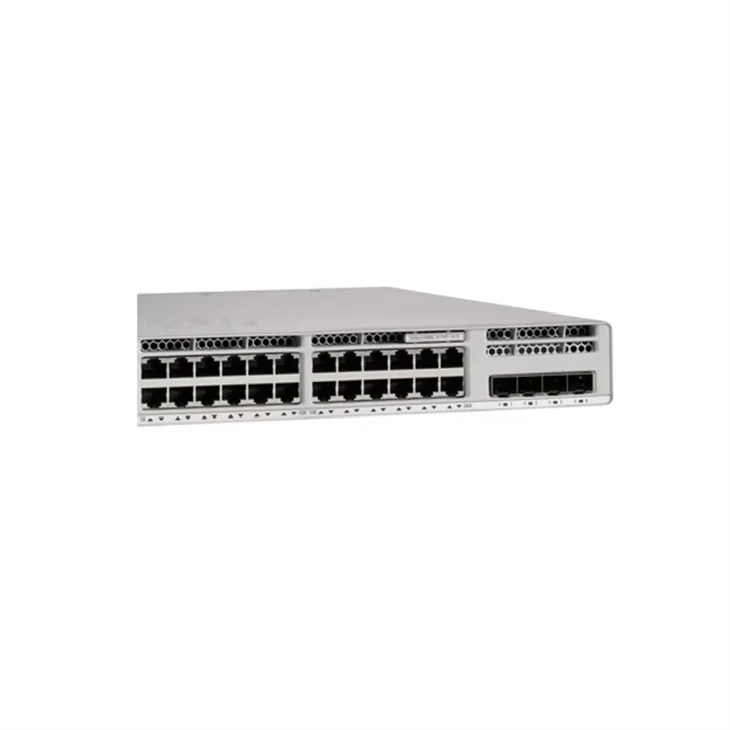

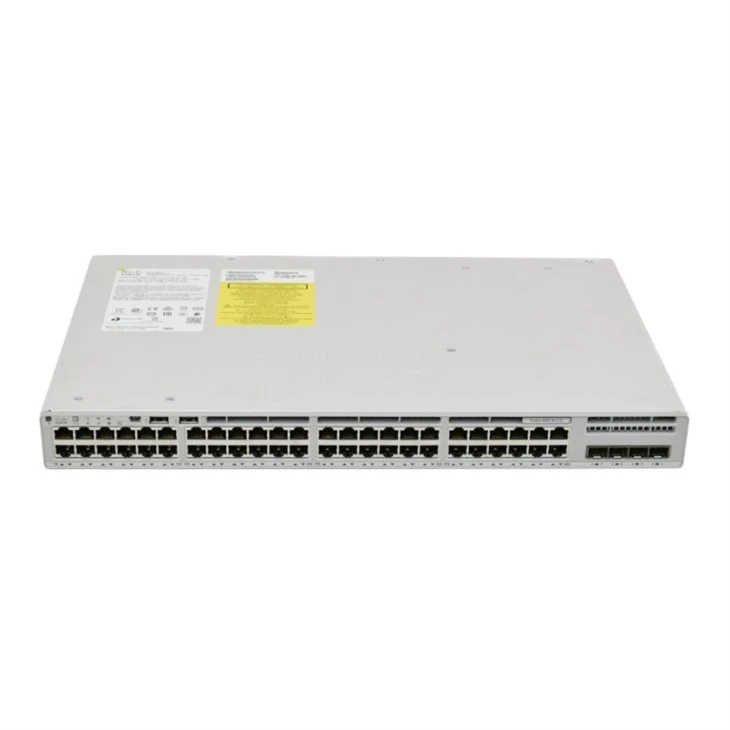

Cisco Catalyst C9300L-48UXG-4X Switch Product Overview
The Cisco Catalyst C9300L-48UXG-4X is a high-performance, stackable fully managed Layer 3 access switch designed for next-generation Wi-Fi 6/6E deployments, IoT, and UPoE convergence in enterprise campus and branch environments. As part of the Catalyst 9300L fixed-uplink family, this 1RU model integrates multigigabit speeds with Cisco Universal Power Over Ethernet (UPoE) to power and connect advanced wireless access points, high-speed desktops, IP phones, and IoT endpoints.
Send Inquiry
Description
Send Inquiry

AITI Tech Limited is one of the leading manufacturers and suppliers of catalyst c9300l-48uxg-4x in China. With over 20 years' experience, we warmly welcome you to buy bulk cheap catalyst c9300l-48uxg-4x in stock here from our factory. All our products are with high quality and low price. Contact us for pricelist.



Cisco Catalyst C9300L-48UXG-4X Switch Product Overview

The switch features 48 UPoE-enabled downlink ports delivering up to 60W per port: 12 multigigabit ports supporting multi-rate speeds (100M/1G/2.5G/5G/10GBase-T) and 36 Gigabit Ethernet copper ports (10M/100M/1G).For uplink flexibility, it provides 4 x 10G/1G SFP+ fixed uplink ports, enabling high-speed fiber backbone integration.The total PoE budget is 675W with the default 1100W AC power supply, field-replaceable and hot-swappable with dual power slots supporting optional redundancy.

Powered by the Cisco UADP 2.0 ASIC with Cisco IOS XE, the switch delivers standalone switching capacity of 392 Gbps and a forwarding rate of 291.66 Mpps (up to 712 Gbps and 529.76 Mpps when stacking with StackWise-320 technology, supporting up to eight Catalyst 9300L units for unified management).The MAC address table size is 32,000 entries, VLANs up to 4,094.Platform resources include 8 GB DRAM, 16 GB flash, a 16 MB packet buffer, and jumbo frame support up to 9,198 bytes.

Advanced security includes hardware-based AES-256 MACsec encryption, 802.1X authentication, TrustSec, Cisco Encrypted Traffic Analytics (ETA), DHCP Snooping, and Dynamic ARP Inspection.The switch runs full Layer 3 dynamic routing (OSPF, EIGRP, BGP, IS-IS, VRF-Lite) and is SD-Access-ready for policy-based automation with Cisco Catalyst Center, supporting both Network Essentials (C9300L-48UXG-4X-E) and Network Advantage (C9300L-48UXG-4X-A) licensing.The C9300L range supports optional Cisco DNA software subscriptions (Essentials, Advantage, Premier). The C9300L-48UXG-4X series is ideal for campus access layers, branch offices, and environments requiring high-density multigigabit UPoE for Wi-Fi 6/6E access points, high-power PTZ cameras, VoIP phones, and IoT endpoints.
