AITI Tech Limited is one of the leading manufacturers and suppliers of catalyst c9300l-24p-4g in China. With over 20 years' experience, we warmly welcome you to buy bulk cheap catalyst c9300l-24p-4g in stock here from our factory. All our products are with high quality and low price. Contact us for pricelist.
Port Configuration and PoE+ Support

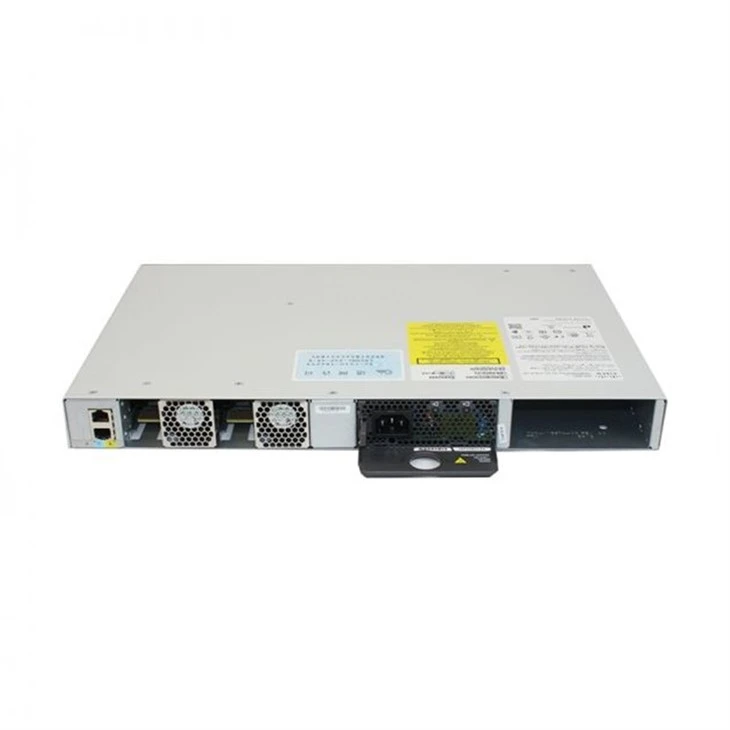

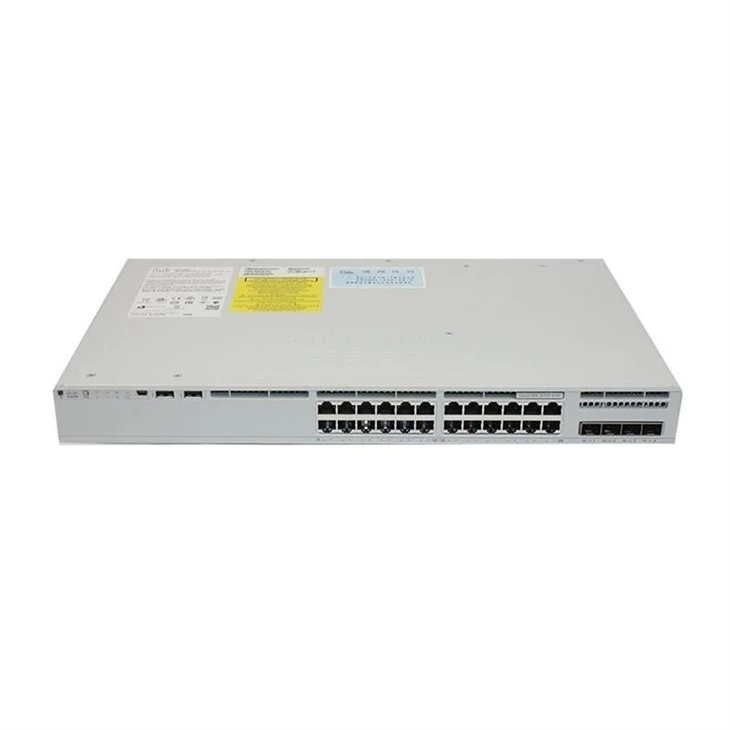

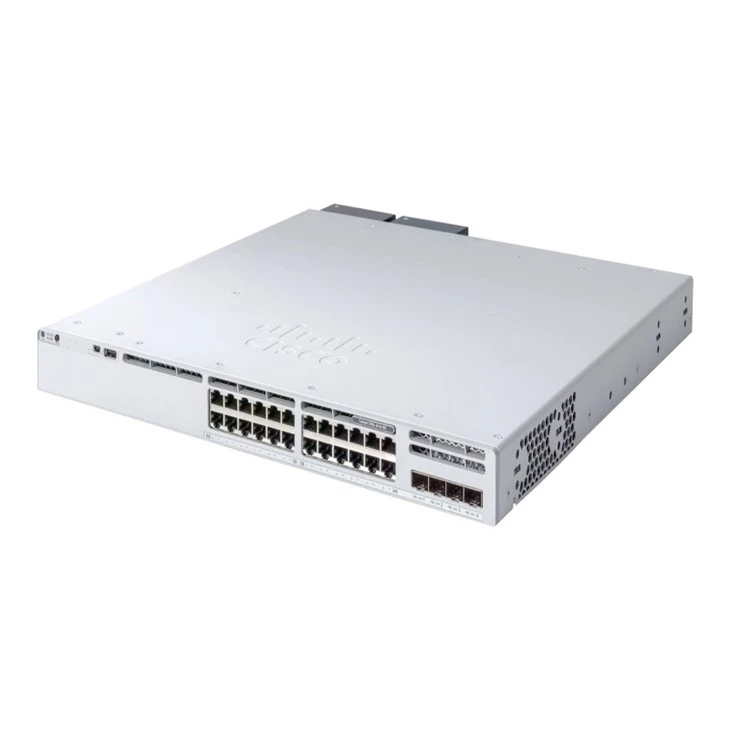

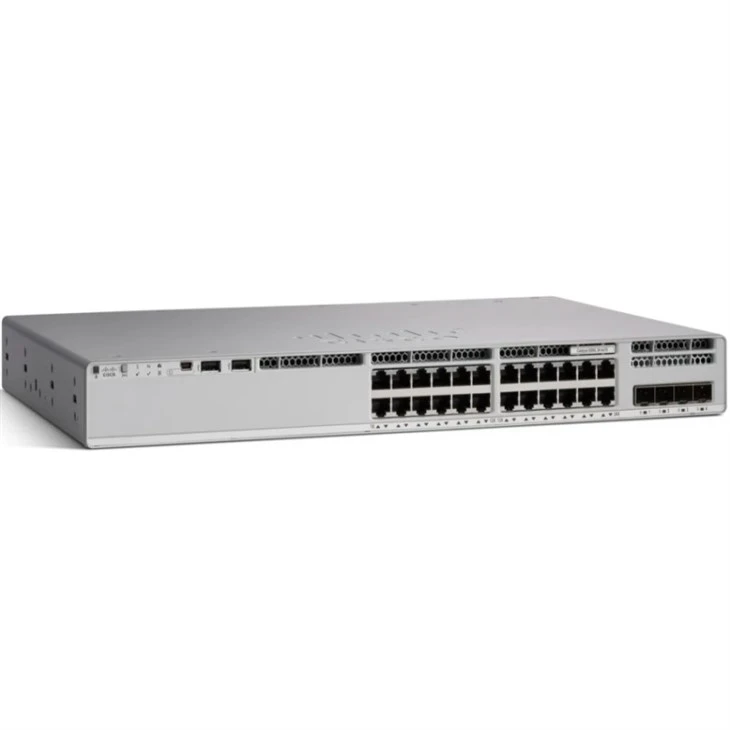

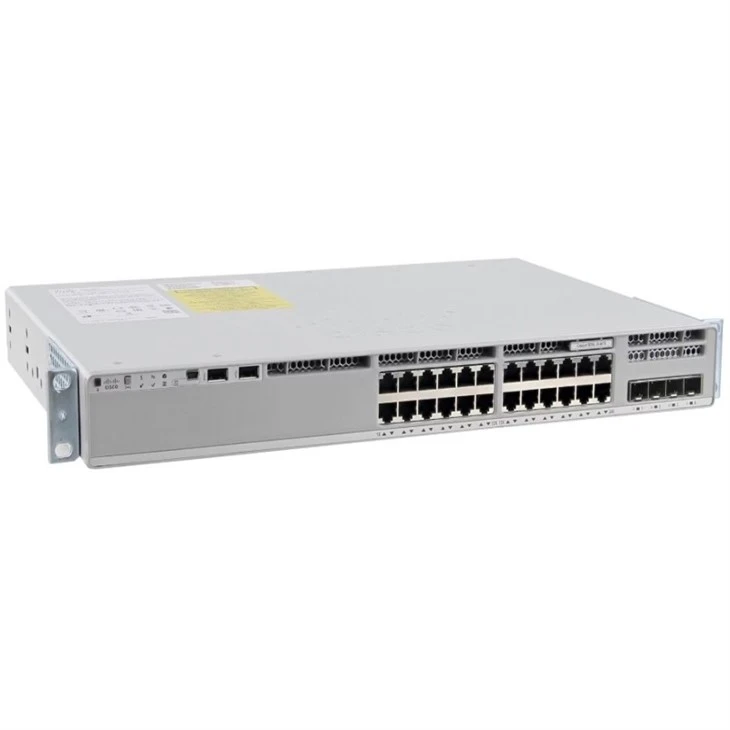

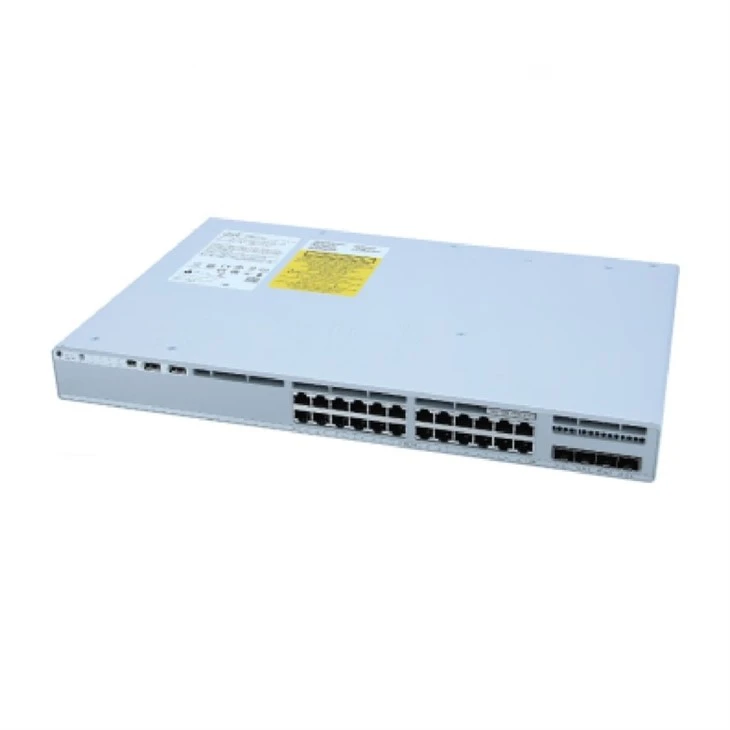

The switch has 24 x 10/100/1000BASE-T PoE+ (IEEE 802.3at) downlink ports and 4 x fixed 1G SFP uplink ports for flexible fibre back connectivity. The total PoE budget is 505 W, and it can power IP phones, Wi-Fi 6/6E access points, cameras and IoT devices. The chassis includes one 715 W AC power supply (redundant unit optional) and three field-replaceable fans for high availability and N+1 redundancy.
Performance and Stacking
The switch has a switching capacity of 56Gbps and a forwarding rate of 41.66Mpps. Bandwidth stacking (StackWise™ 320 technology) is expanded to 320 Gbps, switching capacity is expanded to 376 Gbps and forwarding rate is expanded to 279.76 Mpps with up to eight switches in a single logical stack with sub-50-ms failover protection. It supports 32,000 MAC addresses, 4,094 VLANs and a packet buffer size of 16 MB.
Security & Administration
It runs Cisco IOS XE and the UADP 2.0 ASIC and provides hardware-based AES-256 MACsec encryption, 802.1X authentication, TrustSec and Encrypted Traffic Analytics for encrypted threat visibility. Management options include CLI, NETCONF, RESTCONF, gRPC and Cisco Catalyst Center for policy based automation.
Software Licensing & Best Deployment
Or get it with Network Essentials (C9300L-24P-4G-E) for routed access and segmentation-ready features. Or Network Advantage (C9300L-24P-4G-A) for full dynamic routing (OSPF, EIGRP, BGP, IS-IS) and VRF-based segmentation. Ideal for campus access layers, branch offices and converged PoE+ systems requiring secure, high density Gigabit connectivity.
FAQ
Q1: What is the Cisco C9300L-24P-4G switch?
A1: It is a stackable Layer 3 Gigabit Ethernet access switch for enterprise campus, branch office and secure edge deployments. It supports PoE+ plus advanced enterprise functionality.
Q2: How many ports does it have?
A2: 24 x 10/100/1000BASE-T PoE+ (IEEE 802.3at) interfaces • 4 x fixed 1G SFP uplink ports.
This provides both end-device connectivity and fibre uplinks for backbone integration.
Q3: What is the PoE power budget?
A3: The switch has a 505W PoE budget, enough to power: IP telephones Wi-Fi 6 / 6E access points ·security cameras ·Internet of Things devices.
Q4: Is it stackable?
A4: Yes. It supports StackWise-320 technology that allows: ● Stack of up to 8 switches. ● Stacking bandwidth up to 320 Gbps. ● Failover under 50 ms for high availability.
Q5: Switching ability?
A5: Switching capacity: 56 Gbps (standalone mode). ● Forwarding rate: 41.66 Mpps. ● Stack capacity: Up to 376 Gbps switching/279.76 Mpps forwarding.
Q6: What OS is it on?
A6: Based on Cisco IOS XE and the UADP 2.0 ASIC, it allows programmability and automation.
Q7: What security features are incorporated?
A7: Key security features for enterprises include: ● MACsec AES-256 encryption.
● Authentication 802.1X.
● Cisco TrustSec.
● Encrypted Traffic Analytics (ETA) · Segmentation and role-based access control.
Q8: What are the management options?
A8: You can control it through: ● CLI (Command Line Interface). ● NETCONF/RESTCONF. ● gRPC APIs. ● Cisco Catalyst Center (platform for policy-based automation).
