AITI Tech Limited is one of the leading manufacturers and suppliers of catalyst c1200-24fp-4g in China. With over 20 years' experience, we warmly welcome you to buy bulk cheap catalyst c1200-24fp-4g in stock here from our factory. All our products are with high quality and low price. Contact us for pricelist.
Full PoE+ Capable & Port Configurations

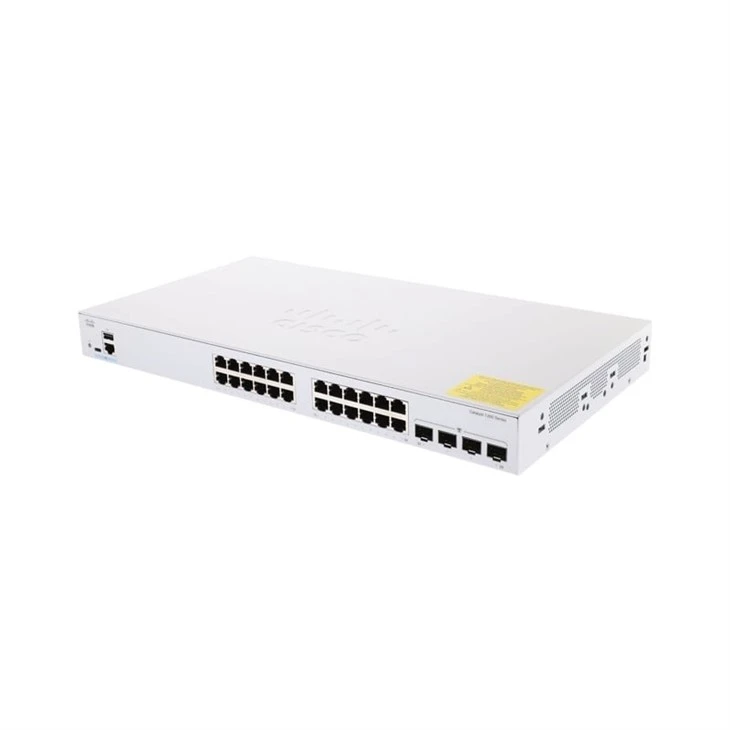

The switch provides 24 x 10/100/1000BASE-T PoE+ (IEEE 802.3at) downlink ports with a maximum of 30 W per port and 4 x fixed 1G SFP uplink ports for flexible fibre backbone integration. The total PoE budget is 375 W, so you can power up to 24 PoE+ devices simultaneously such as Wi-Fi access points, IP phones, PTZ cameras and other IoT endpoints.
Hardware Performance and Administration
The switch is equipped with a 1.4GHz dual-core ARM CPU, 1GB DDR4 DRAM and 512MB flash memory. It has a switching capability of 56 Gbps and a forwarding rate of 41.66 million packets per second (Mpps). The platform supports up to 8,000 MACs, 255 active VLANs, jumbo frames up to 9,000 bytes, and 32 IPv4 static routes for network segmentation. Management interfaces: Cisco Business Dashboard, web GUI, CLI and mobile app with plug and play configuration for zero touch deployment. It features one silent cooling fan (34.4 dBA), saves up to 58% energy (EEE 802.3az) and its tiny 1U form factor (445 x 345 x 44mm, 4.6kg) allows 19-inch rack, desk or wall mounting.
security & good use cases
It also provides advanced security features including IEEE 802.1X port based authentication, ACLs (up to 512 entries), DoS attack prevention, DHCP snooping, and port security. QoS with 8 hardware queues and WRR scheduling to prioritise voice, video and data traffic. The C1200 24FP 4G is ideal for campus access layers, retail locations (POS systems, cameras, guest Wi-Fi), classrooms (VoIP phones, interactive displays), and any place where high-density PoE+ is required for IoT devices and converged voice-video-data networks.
FAQ
Q1: The C1200-24FP-4G is best suited for small business networks?
A1: Perfect for SMB networks, branch offices, retail stores, classrooms and distributed enterprise environments that need reliable PoE+ connectivity.
Q2: What devices can this switch power?
A2: Its Ethernet ports can power PoE-enabled IP phones, wireless access points, surveillance cameras and other IoT devices.
Q3: Can it handle full PoE load for all ports simultaneously?
A3: Yes. With a 375W PoE budget, it is capable of supporting full PoE+ on all 24 ports in normal deployment conditions.
Q4: What are the uplink choices?
A4: It has 4 x 1G SFP uplink ports for flexible fibre or copper backbone connectivity.
Q5: How does the switch perform under heavy traffic loads?
A5: It offers 56 Gbps of switching capacity and 41.66 Mpps of forwarding performance for stable wire-speed operation.
Q6: What are its energy efficiency features?
A6: It also supports IEEE 802.3az Energy Efficient Ethernet (EEE), which reduces power consumption during periods of low activity on the network.
Q7: What management interfaces are provided?
A7: Supports Cisco Business Dashboard, web GUI, CLI and mobile app. Zero touch provisioning for easy deployment.
Q8: What kind of traffic optimisation it provides?
A8: It uses QoS with multiple hardware queues and WRR scheduling to prioritise traffic that is latency-sensitive such as voice and video.
