AITI Tech Limited is one of the leading manufacturers and suppliers of catalyst c9200l-48t-4x in China. With over 20 years' experience, we warmly welcome you to buy bulk cheap catalyst c9200l-48t-4x in stock here from our factory. All our products are with high quality and low price. Contact us for pricelist.
Port Configuration & Hardware Specifications

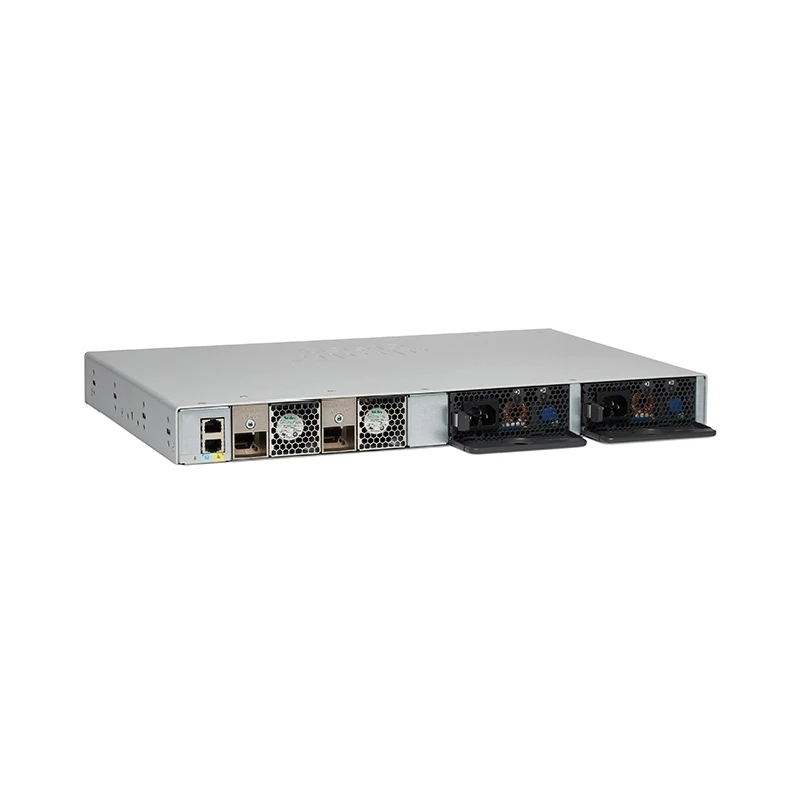

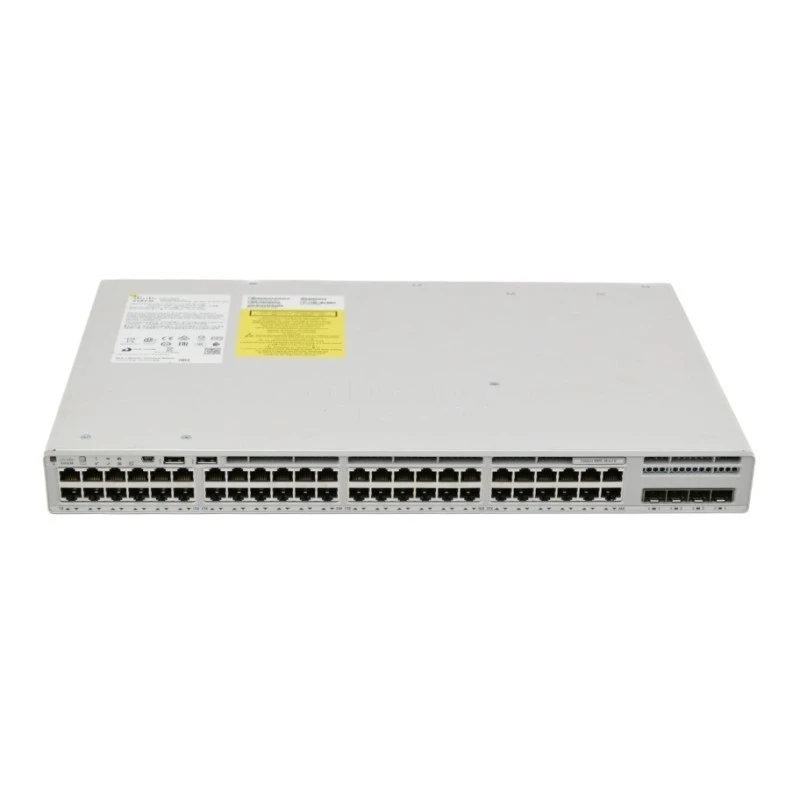

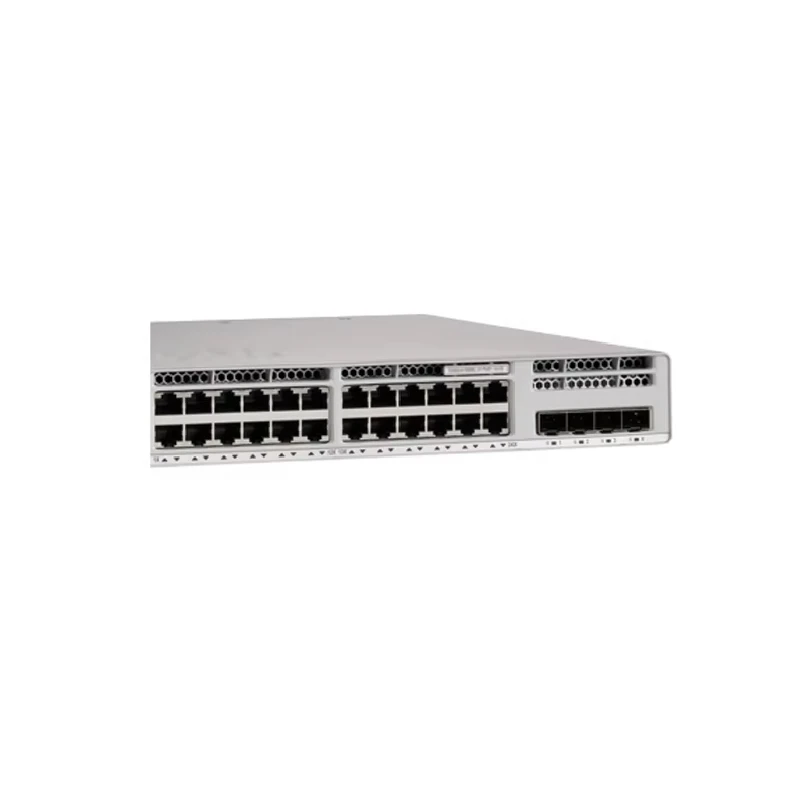

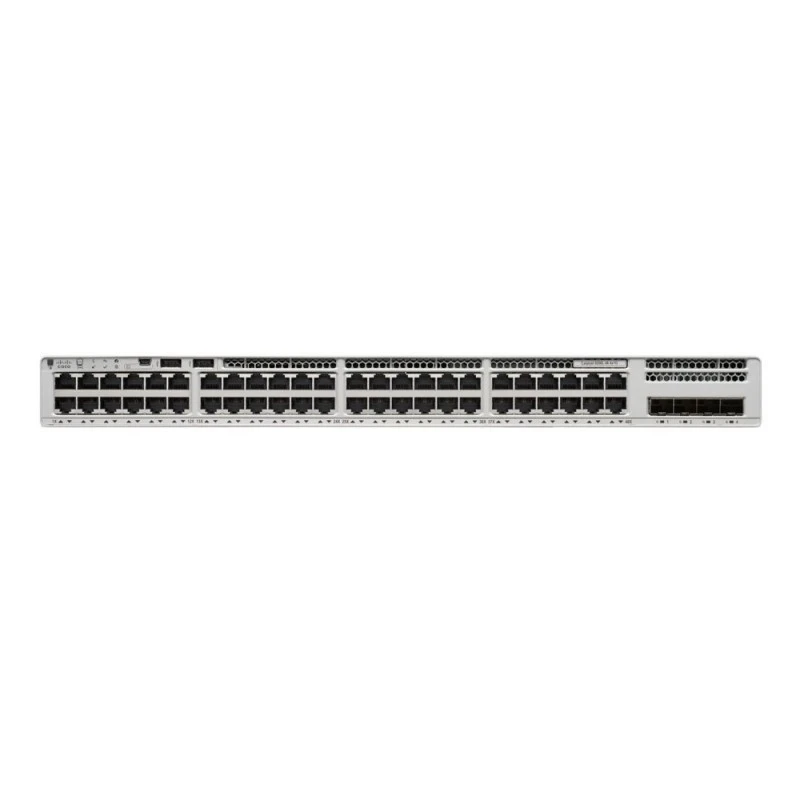

The switch features 48 x 10/100/1000BASE-T data ports (non-PoE) plus 4 fixed 10G SFP+ uplinks, delivering a switching capacity of 176 Gbps and a forwarding rate of 130.95 million packets per second(Mpps). The MAC address table supports 16,000 entries, VLAN capacity is up to 1024, and jumbo frame support reaches 9,198 bytes. Onboard memory includes 2 GB DRAM and 4 GB flash memory. The chassis features two power supply slots and redundant fan support for high availability.
Security & High Availability
Built on Cisco IOS XE and the UADP 2.0 Mini ASIC, the switch includes hardware-based AES-128 MACsec encryption, 802.1X authentication, DHCP Snooping, and Dynamic ARP Inspection for robust network security. StackWise-80 technology provides 80 Gbps stacking bandwidth, allowing up to eight switches to be managed as a single unit with a single IP address.
Software Licensing & Ideal Deployment
The switch is available with two software license tiers: Network Essentials (C9200L-48T-4X-E) or Network Advantage (C9200L-48T-4X-A). Network Essentials supports basic Layer 2 switching and static routing, while Network Advantage unlocks full dynamic routing (BGP, OSPF, EIGRP, IS-IS) and VRF-based segmentation. The C9200L-48T-4X series is ideal for campus access layers, branch office aggregation, and networks requiring high-density Gigabit data connectivity with 10G uplink capacity without Power over Ethernet.
