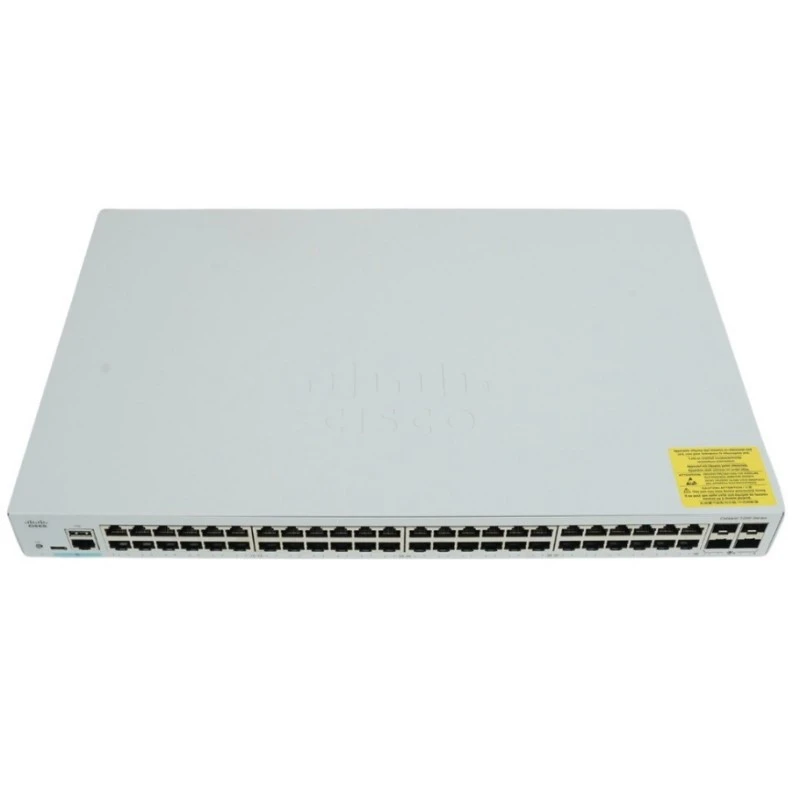

Overview of Cisco Catalyst C1300-48T-4X Switch
It features 48 x 10/100/1000BASE-T RJ-45 downlink ports and 4 x fixed 10G SFP+ uplink ports for high-speed fibre backbone integration and scalable network expansion. With a non-blocking switching capacity of 176 Gbps and a wire-speed forwarding rate of 130.94 million packets per second (Mpps), the switch delivers reliable, high-performance data transfer for bandwidth-hungry applications. The platform is powered by a 1.4 GHz dual-core ARM CPU 1 GB DDR4 DRAM and 512 MB flash. It supports 16,000 MAC addresses, 4,093 simultaneous VLANs based on IP and MAC, jumbo frames up to 9,000 bytes and static IPv4/IPv6 routing for inter-VLAN communication. Low-noise cooling fan provides reliable thermal control and IEEE 802.3az Energy-Efficient Ethernet reduces power consumption.
Up to 990 static IPv4 routes and 128 IPv4 interfaces with advanced Layer 3 capabilities. It has full Layer 2 features, including 802.1Q VLAN tagging, Voice VLAN, Auto Surveillance VLAN (ASV), Link Aggregation Control Protocol (LACP) support with eight groups of eight ports each, MSTP with eight instances, RPVST+ with up to 126 instances and IGMP snooping for up to 2,000 multicast groups. Security features include IEEE 802.1X port-based authentication, Access Control Lists (ACLs) with support of up to 1024 rules, prevention of DoS attacks, Dynamic ARP Inspection (DAI), DHCP snooping, IP Source Guard and IPv6 First Hop Security (FHS). Quality of Service (QoS) with 8 hardware priority queues, 802.1p and DSCP classification and Weighted Round Robin (WRR) scheduling. Management options include Cisco Business Dashboard which is an easy-to-use web-based GUI, CLI, SNMP and zero-touch setup with Cisco Network Plug & Play. The stackable switch can support up to 8 units in the Catalyst 1300 family, which helps simplify management of multiple switches. The compact 1U rack mountable chassis (445×288×44 mm, 4.3 kg) complies with numerous industry standards (IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.1X, etc.) and is covered by the Cisco Limited Lifetime Hardware Warranty. The C1300-48T-4X series is perfect for high-density wired deployments in large business offices, retail stores, campus access layers, academic computer labs, and government or medical applications that require silent, fan-cooled, cost-effective Layer 3 switching with 10G uplink capacity and no Power over Ethernet. 4×10G SFP+ uplinks offer scalable, future-proof connectivity to support network growth.
FAQ
Q1: What is the primary use of C1300-48T-4X?
A1: Designed for high-density enterprise access networks with 48 Gigabit ports and 10G uplinks, it does not have PoE capability.
Q2: Does this switch support PoE?
A2: No. The C1300-48T-4X is the non-PoE model for uplink aggregation and high-performance wired connectivity.
Q3: How many uplink ports are there?
A3: It features 4 x 10G SFP+ uplink ports for high-speed fibre backbone or aggregation links.
Q4: What is the switching capacity and performance?
A4: It provides 176 Gbps switching capacity and a forwarding rate of 130.94 Mpps delivering wire speed performance on all ports.
Q5: Are you able to stack several units?
A5: Sure. It supports stacking of up to 8 switches in the Catalyst 1300 family for centralised management and scalability.
Q6: What Layer 3 features do you have?
A6: It supports static IPv4/IPv6 routing, inter-VLAN routing and up to 990 IPv4 static routes with 128 interfaces.
Q7: What security features are available?
A7: Security features include 802.1X authentication, ACLs (up to 1024 rules), DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard and IPv6 First Hop Security.
Q8: What are the management options?
A8: It supports Cisco Business Dashboard, web GUI, CLI, SNMP, and Cisco Network Plug and Play for zero-touch provisioning.
