AITI Tech Limited is one of the leading manufacturers and suppliers of c9124axi-row in China. With over 20 years' experience, we warmly welcome you to buy bulk cheap c9124axi-row in stock here from our factory. All our products are with high quality and low price. Contact us for pricelist.
Hardware & RF Performance

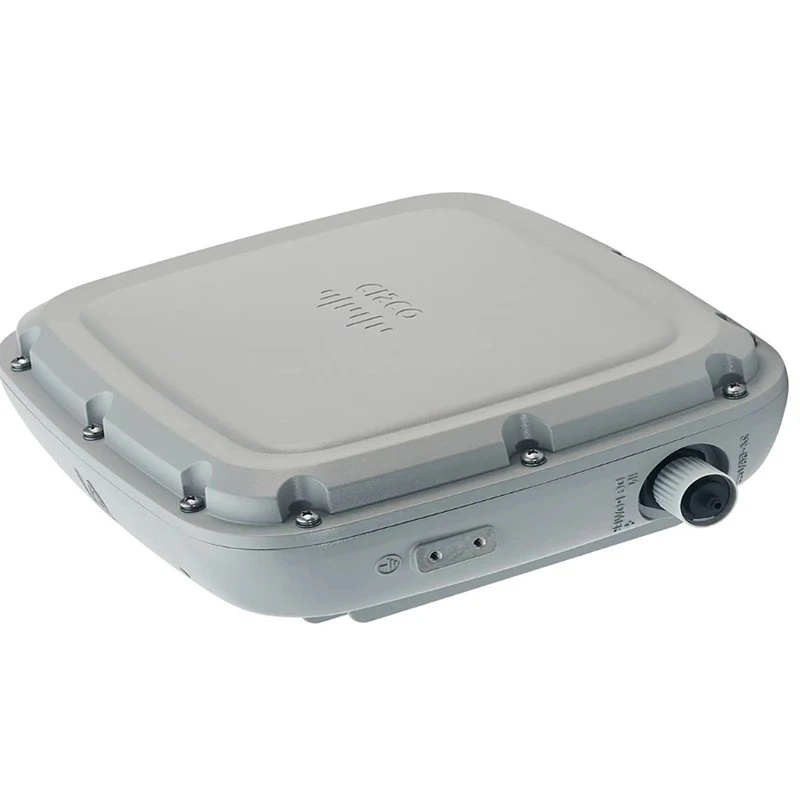

The C9124AXI-ROW is equipped with a tri-radio design that includes dual 4x4:4 MU-MIMO radios operating in the 2.4 GHz and 5 GHz bands, plus a dedicated scanning radio for security and RF management, supporting up to 400 client devices per AP. The aggregate data rate reaches up to 5.38 Gbps, enabling superior performance in high-density environments. The AP features integrated omnidirectional antennas with peak gain of 6 dBi at 2.4 GHz and 6.5 dBi at 5 GHz, providing broad and consistent coverage for large outdoor areas such as campuses, warehouses, stadiums, and industrial facilities. The uplink includes a Multigigabit Ethernet port supporting speeds up to 5 Gbps, allowing for high-throughput wired backhaul connectivity.
Wi-Fi 6 Capabilities
The AP fully leverages the IEEE 802.11ax standard with advanced technologies: OFDMA-based scheduling divides bandwidth into smaller Resource Units (RUs) to serve multiple clients simultaneously, reducing overhead and latency; Uplink/downlink MU-MIMO with two spatial streams enables the AP to split spatial streams between client devices to maximize throughput; BSS coloring (spatial reuse) allows the AP and its clients to differentiate between Basic Service Sets, permitting more simultaneous transmissions; and Target Wake Time (TWT) allows clients to stay asleep and wake only at prescheduled times, offering significant energy savings for battery-operated IoT devices-up to 3 to 4 times the savings achieved by 802.11n and 802.11ac.
IoT & Advanced Security
The integrated Bluetooth 5.0 Low Energy (BLE) radio and Zigbee support enable location-based use cases such as asset tracking, wayfinding, and IoT device connectivity. The Cisco RF ASIC provides advanced real-time spectrum analysis and delivers features such as Cisco CleanAir for proactive interference detection, Wireless Intrusion Prevention System (wIPS), and Dynamic Frequency Selection (DFS). Security features include WPA3 encryption, secure boot, and Encrypted Traffic Analytics.
Deployment & Compliance
The AP supports multiple deployment modes, including controller-based (Catalyst 9800 Series Wireless Controllers), FlexConnect, Mobility Express, and Embedded Wireless Controller (EWC) operation for mesh deployments where the AP can act as a Root Access Point (RAP), providing scalability and centralized management in wireless mesh networks. The -ROW suffix denotes the Rest of World regulatory domain, which applies to this SKU intended for use in international regions outside of specific regulatory domains such as the United States (-A) or Europe (-E). When deploying ROW-domain APs, organizations should ensure that local regulatory requirements for channels, data rates, and maximum EIRP are compatible. Backed by Cisco DNA Center for centralized management and Cisco DNA Spaces for location analytics, the Catalyst C9124AXI-ROW provides a resilient, secure, and intelligent foundation for high-performance outdoor wireless networks.
